Voltage 12V
Amperage 100A
Mount Leg ID 57mm
C-C Mounts 175mm
Hole ID Top M8
Hole ID Bottom 10mm, M10
Shaft Size
Pulley Type 6PV, CLUTCH
Pulley Belt Width
Pulley Grooves 6
Pulley Diameter 60mm
Regulator Type INTERNAL
Series
Connections Plug # EP35

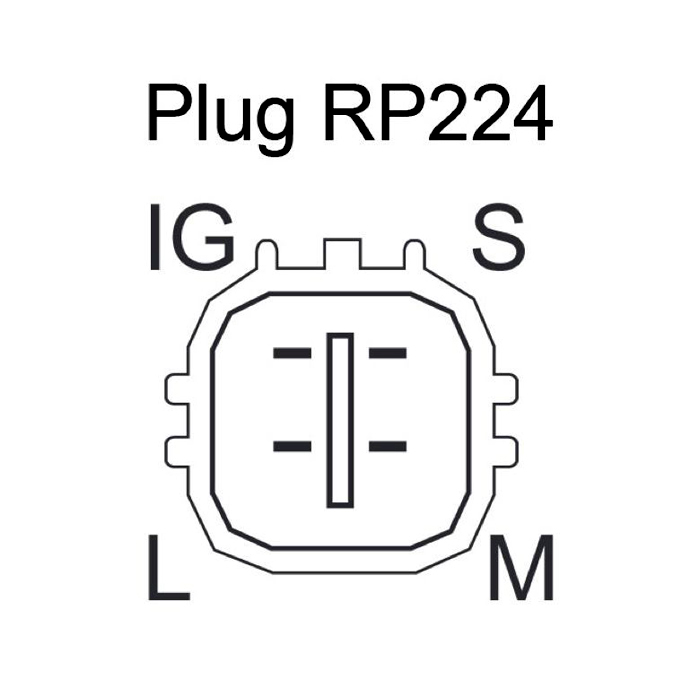

Terminals B+, S, IG, M(FR), L
Excitation EXTERNAL
Ground NEGATIVE
Weight (Kg) 7.0kg
AUA-006
people are viewing this right now

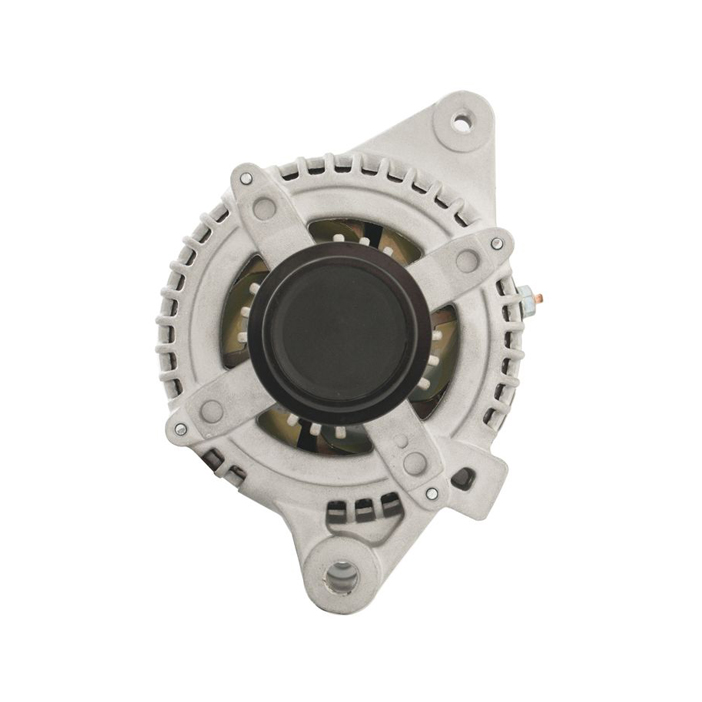

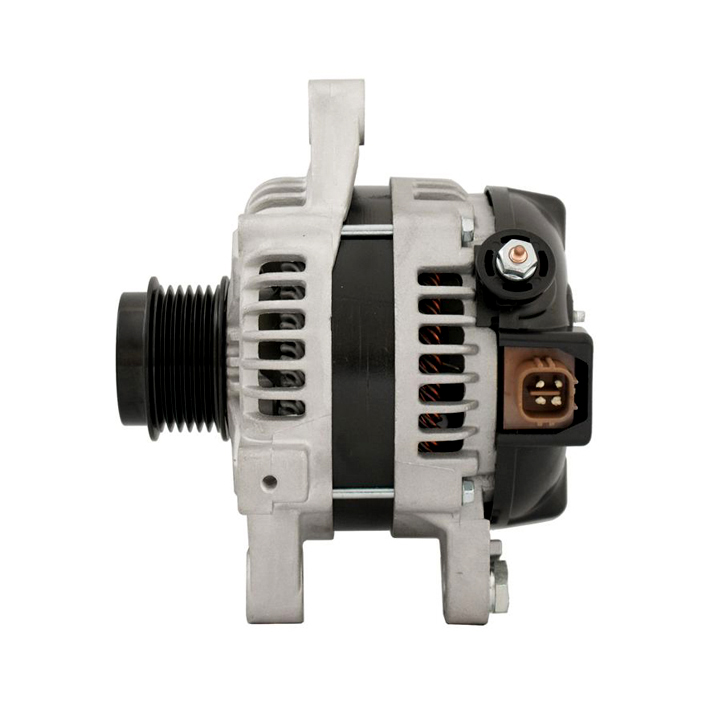

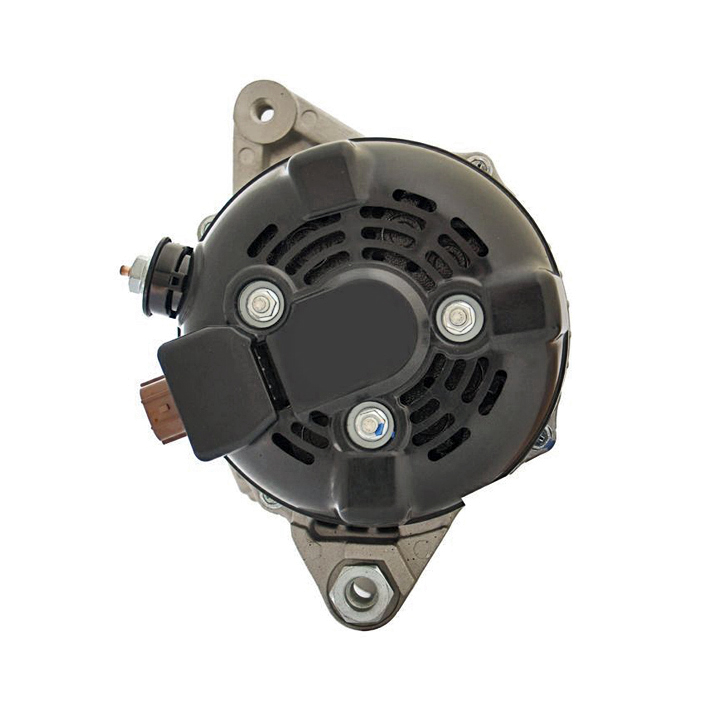

ALT 12V 100A, COROLLA ZRE152R 2ZRFE, YARIS 1.6L 04-07, WISH, 27060-0T040, 65-8504, 1986A01322, ARJ243, ANJ284, ANJ445, ANJ284.
Guaranteed Safe Checkout
- Free Australia wide Shipping on All Order Over $500
- Delivers in: 3-7 Working Days Shipping & Return
| Make | Model | Years | Variant | Engine |
| Toyota | Corolla | 2007 | ZRE152, ZRE172, 1.8 VVTi, 2ZR-FE, 2ZR-FAE, 07>,Petrol | 1.8 CC |
| Toyota | Corolla | 2007/2014 | ZRE152R 1.8 2ZR-FAE, 2ZR-FE 07-14, Petrol | 1.8 CC |
| Toyota | Corolla | 2007 | ZRE182, 1.8 VVTL-i, 2ZR-FBE 07>, Petrol | 1.8 CC |
| Toyota | Corolla | 2012 | ZRE182R 1.8 2ZR-FE 12>, Petrol | 1.8 CC |
