Voltage 12V
Amperage 150A
Mount Leg ID 36mm
C-C Mounts 175mm
Hole ID Top 10mm, M8
Hole ID Bottom 10mm, M8
Shaft Size
Pulley Type 7PV, CLUTCH
Pulley Belt Width
Pulley Grooves 7
Pulley Diameter 53mm
Regulator Type INTERNAL
Series
Connections Plug # EP35
Terminals B+, S, IG, M(FR), L
Excitation EXTERNAL
Ground NEGATIVE
Weight (Kg) 8.0kg
AUA-011
people are viewing this right now

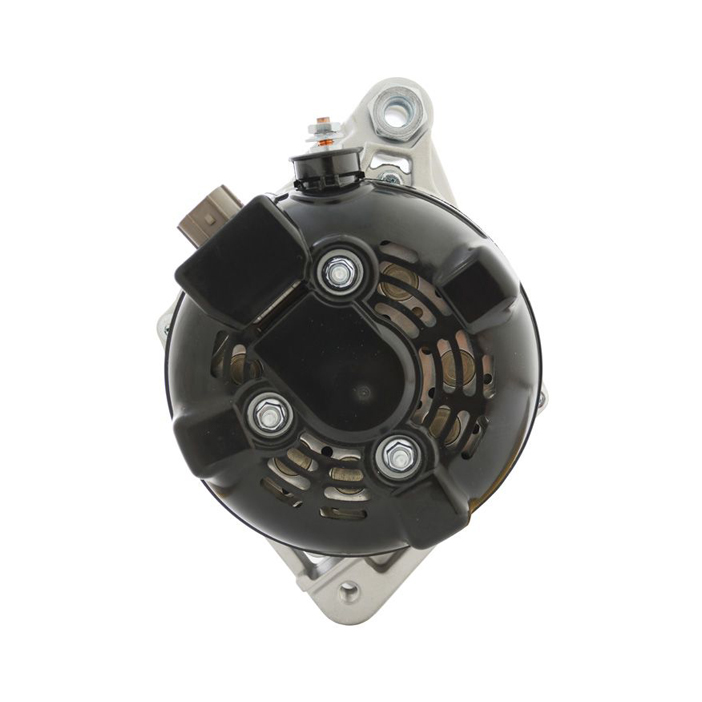

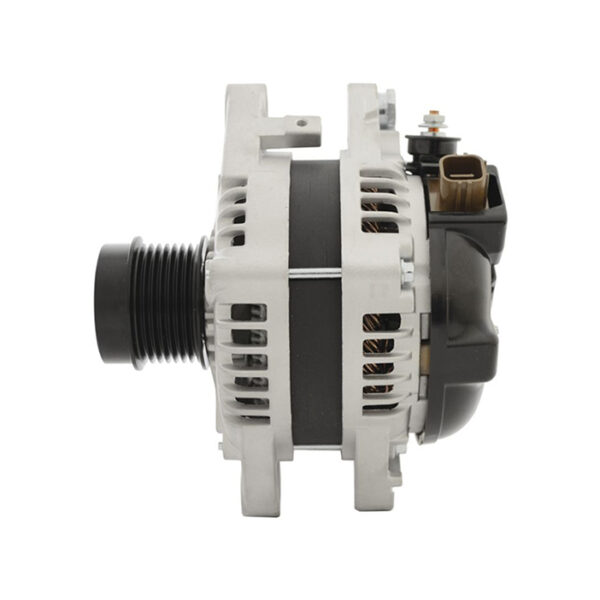

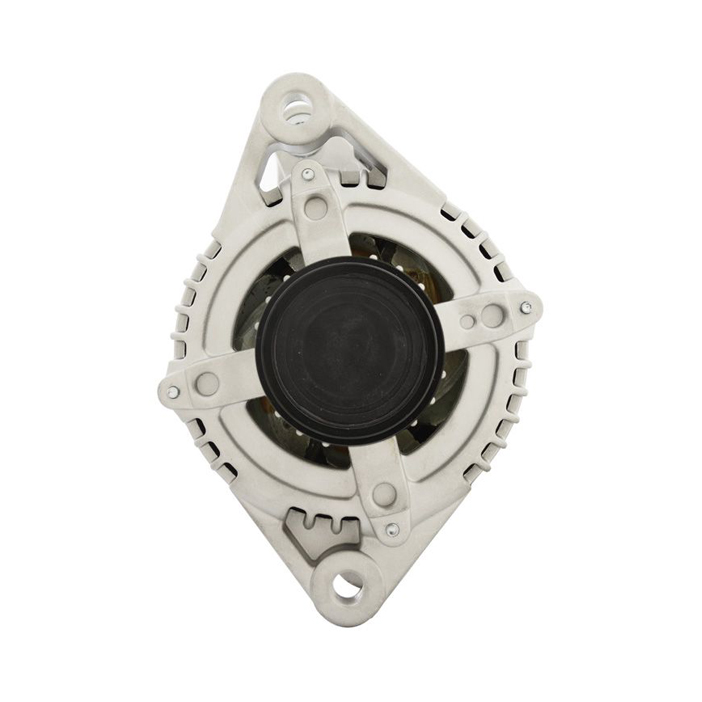

ALT 12V 150A TOYOTA KLUGER, HIGHLANDER W/- 2GR-FE 3.5L V6 65-8783, 65-8497-1, 27060-0P150, ANJ231, ARJ247
Guaranteed Safe Checkout
- Free Australia wide Shipping on All Order Over $500
- Delivers in: 3-7 Working Days Shipping & Return
| Make | Model | Years | Variant | Engine |
| Toyota | Kluger | 2007/2014 | GSU40R, GSU45R, 3.5 2GR-FE, 07-14, Petrol | 3.5 CC |
| Toyota | RAV4 | 2007/2013 | GSA33R, 3.5, 2GR-FE, 07-13, Petrol | 3.5 CC |
| Toyota | Kluger | 2007/2014 | GSU40R, GSU45R, 3.5 2GR-FE, 07-14, Petrol | 3.5 CC |
