Voltage 12V
Amperage 70A
Mount Leg ID 58mm
C-C Mounts 164mm
Hole ID Top M8
Hole ID Bottom 10mm
Shaft Size
Pulley Type 5PV
Pulley Belt Width
Pulley Grooves 5
Pulley Diameter 59mm
Regulator Type INTERNAL
Series
Connections Plug # EP7/ EP24
Terminals B+, S, IG, L
Excitation EXTERNAL
Ground NEGATIVE
Weight (Kg) 6.0kg
AUA-025
people are viewing this right now

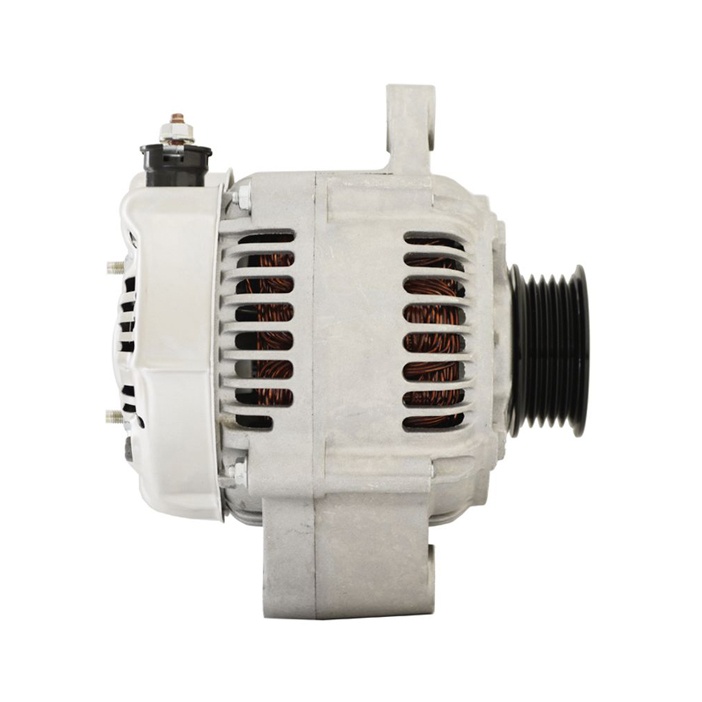

ALT 12V 70A, TOYOTA HIACE 4 RUNNER, 2Y, 3Y, 4Y, 88-95, 100211-1150, 65-8311, 65-8313, ARJ134, ANJ002, ARJ119, ARJ199, ANJ280.
Guaranteed Safe Checkout
- Free Australia wide Shipping on All Order Over $500
- Delivers in: 3-7 Working Days Shipping & Return
| Make | Model | Years | Variant | Engine |
| Toyota | HiAce | 1985/2005 | RZH113 2.4 2RZ-E 89-05, Petrol | 2.4 cc |
| Toyota | LiteAce | 1986/1996 | YM, YR 1.8, 2Y, 86-96, Petrol | 1.8 cc |
| Toyota | Tarago | 1983/1984 | YR20, 1.8 De Luxe, 2Y-C, 83-84, Petrol | 1.8 cc |
| Toyota | Tarago | 1984/1990 | YR21, 2.0 Super, 3Y, 84-90, Petrol | 2.0 cc |
| Toyota | HiLux VI | 1995/2005 | RZN147, 149, 154, 2.7, 3RZ-FE, 95-05, Petrol | 2.7 cc |
